Dragon Winch Winch - MAVERICK Series and Professional Installation by AMGX System

The Dragon Winch DWM 2000 ST S from the MAVERICK series is designed for demanding conditions, and we make sure its installation is perfectly matched to the fit-out and works reliably. As a result, the winch keeps its full functionality and can be used quickly and easily in any conditions.

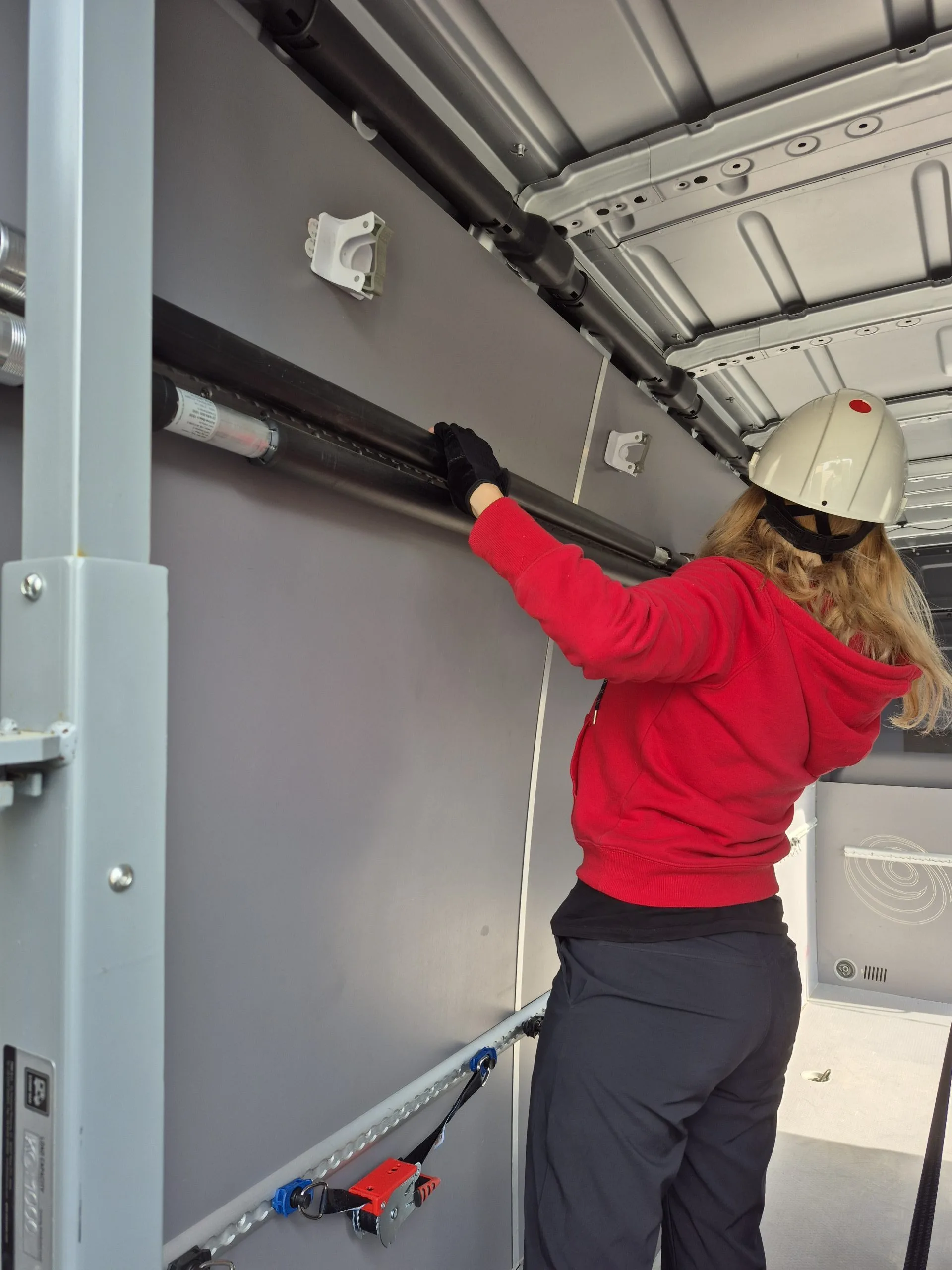

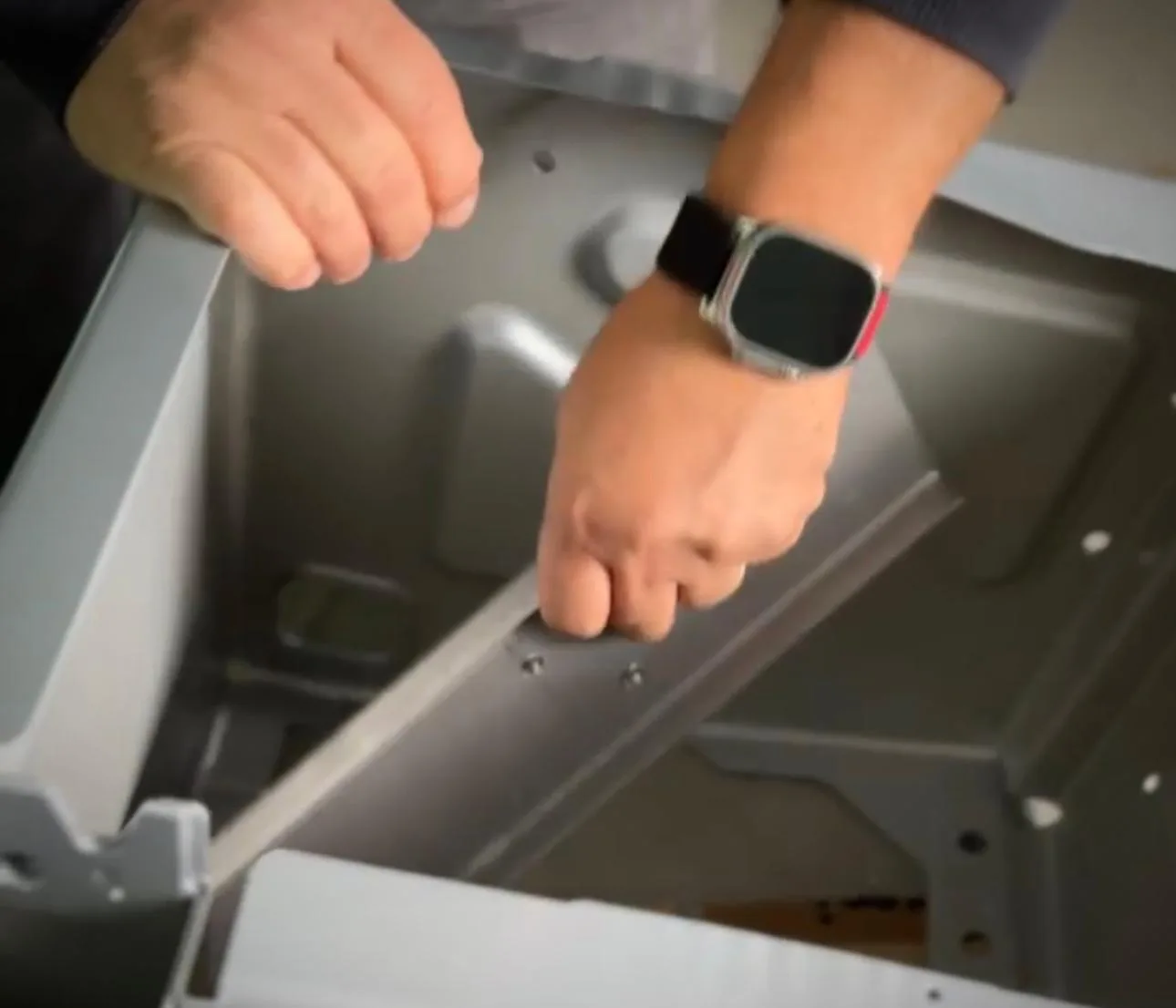

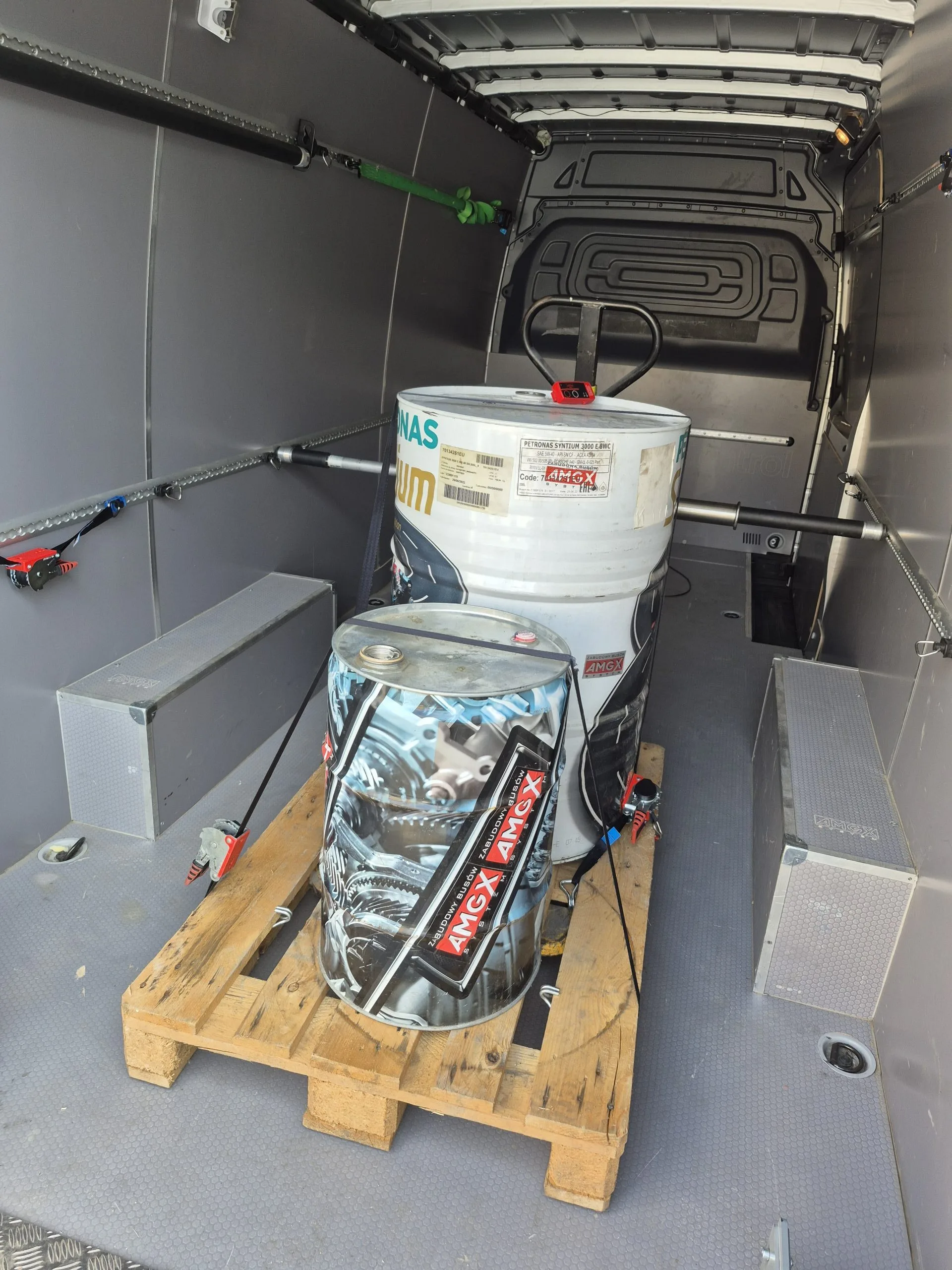

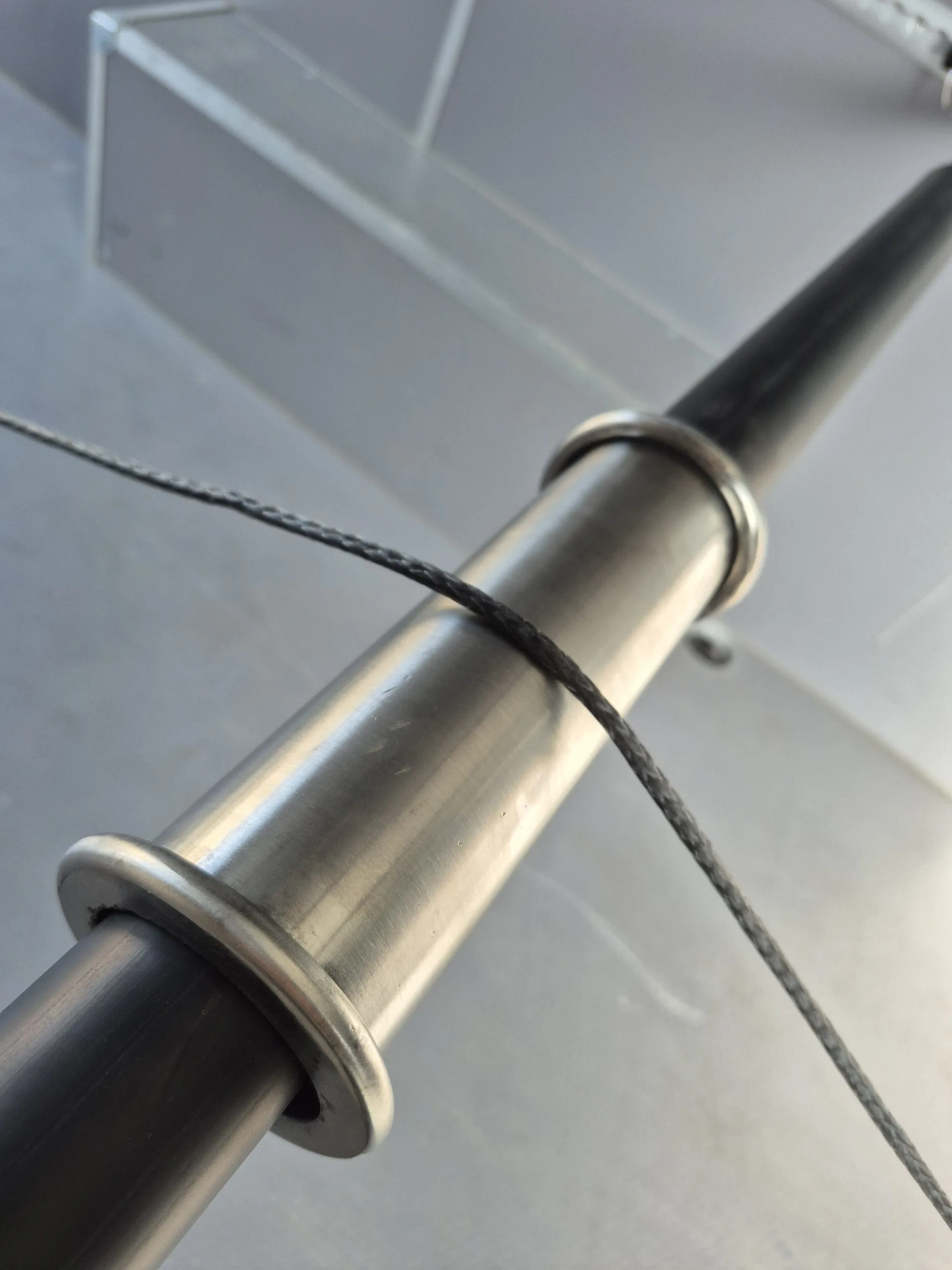

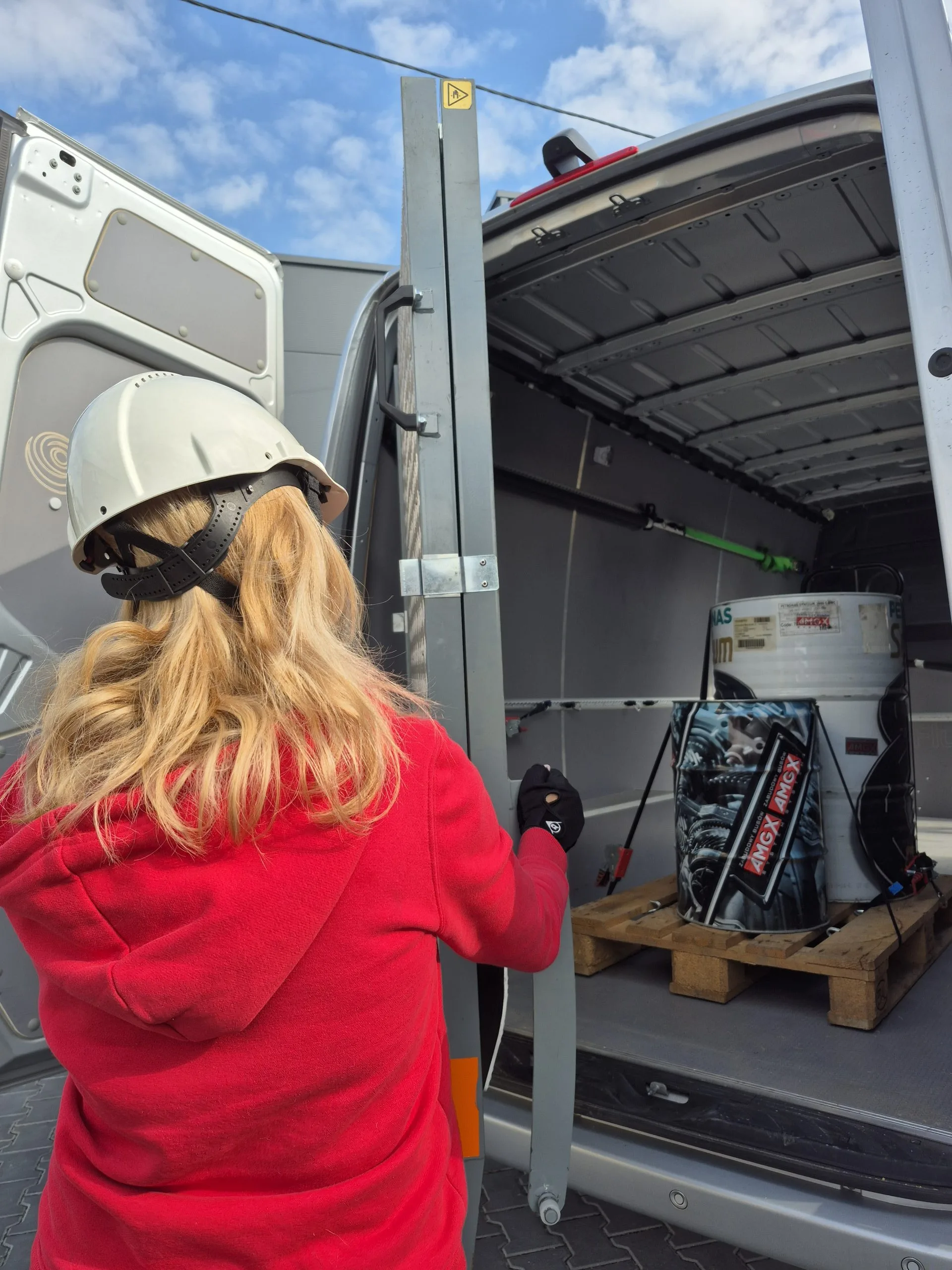

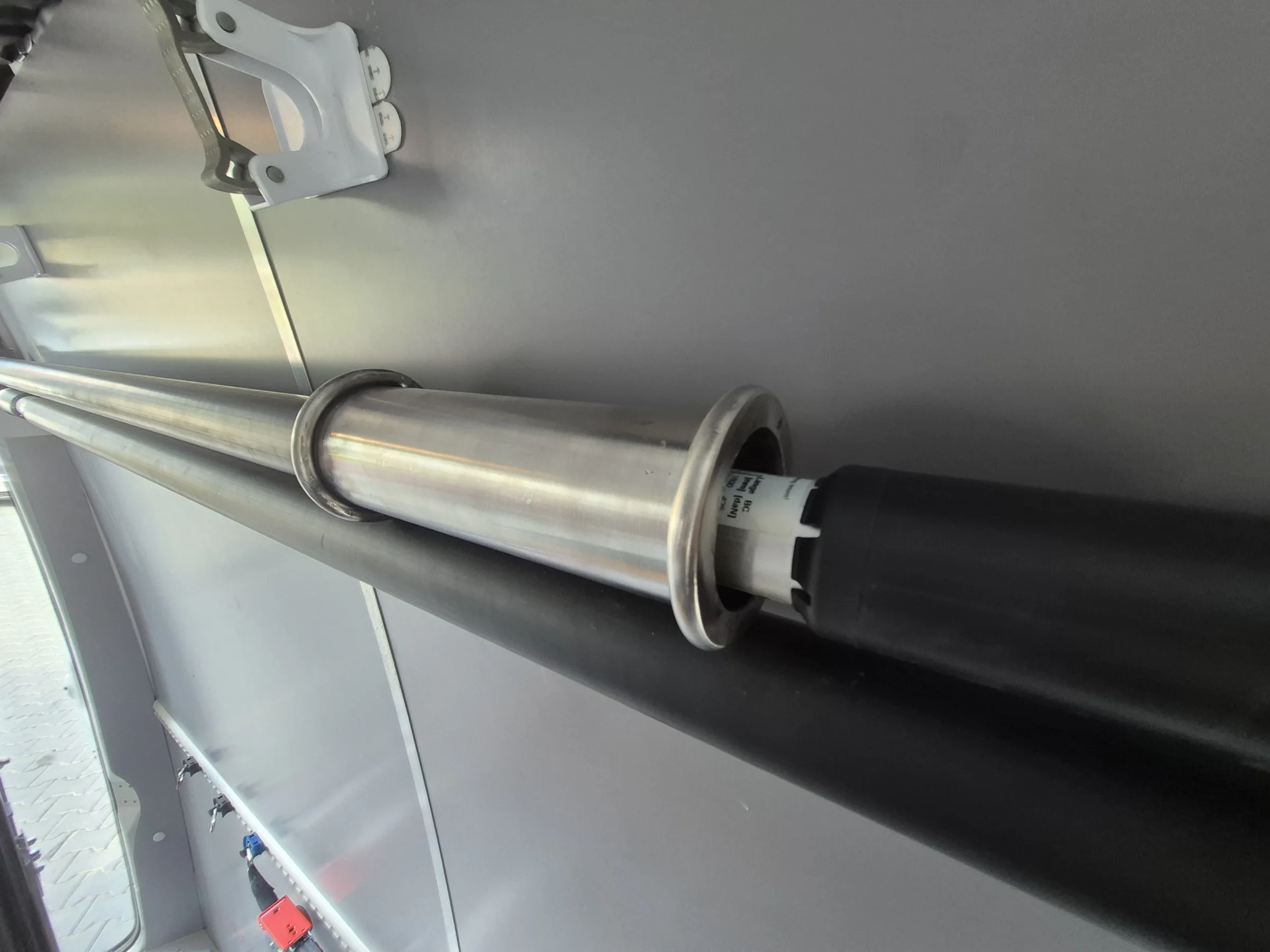

In the Mercedes Sprinter, we mounted the winch under the passenger seat, on a solid 4 mm stainless steel base with an additional safety lever. To ensure smooth and safe operation, we used a spreader bar with a stainless steel sleeve on the Airline rails fitted along the sides of the vehicle, which protects the rope from damage and ensures it is guided correctly.

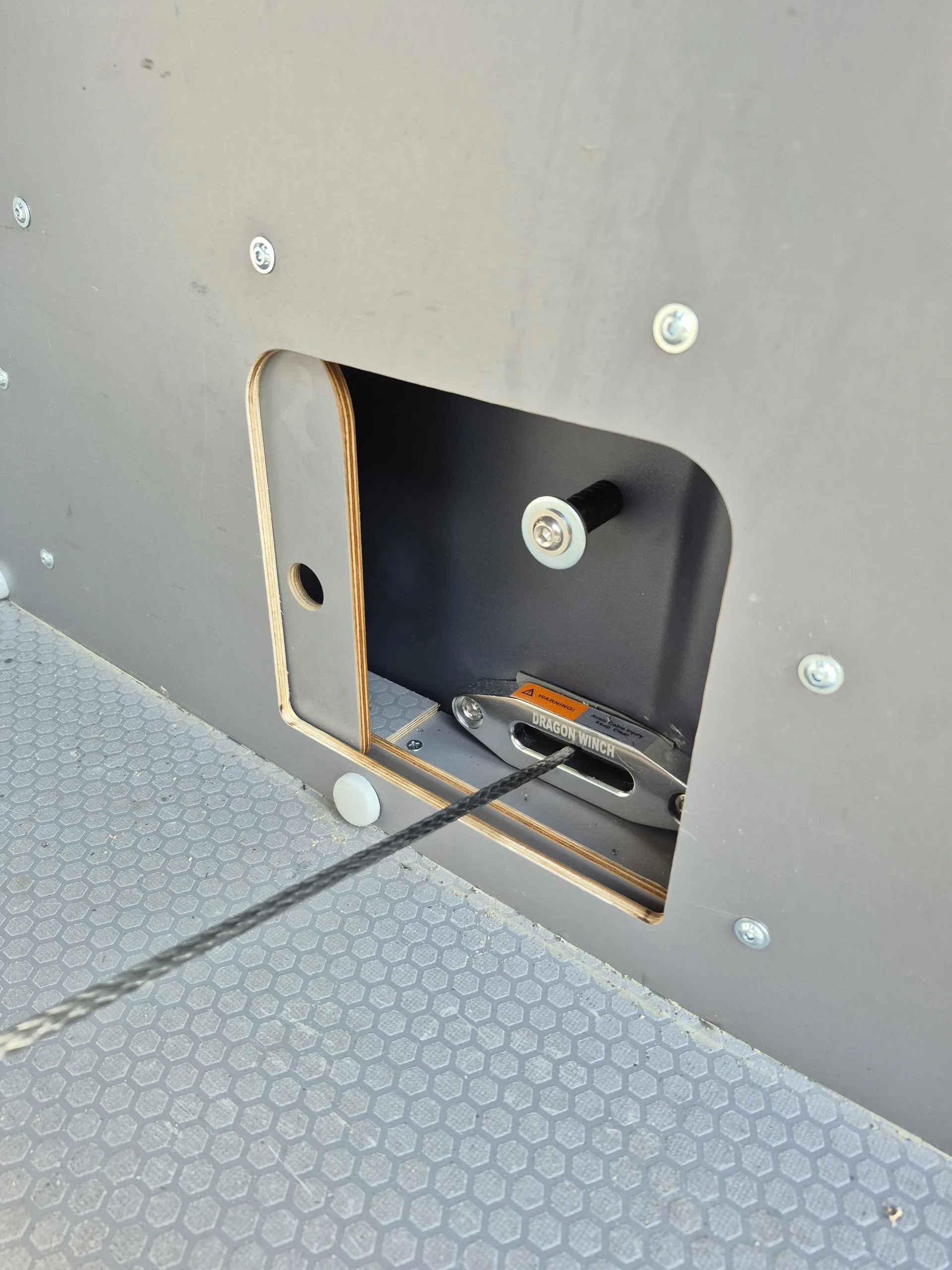

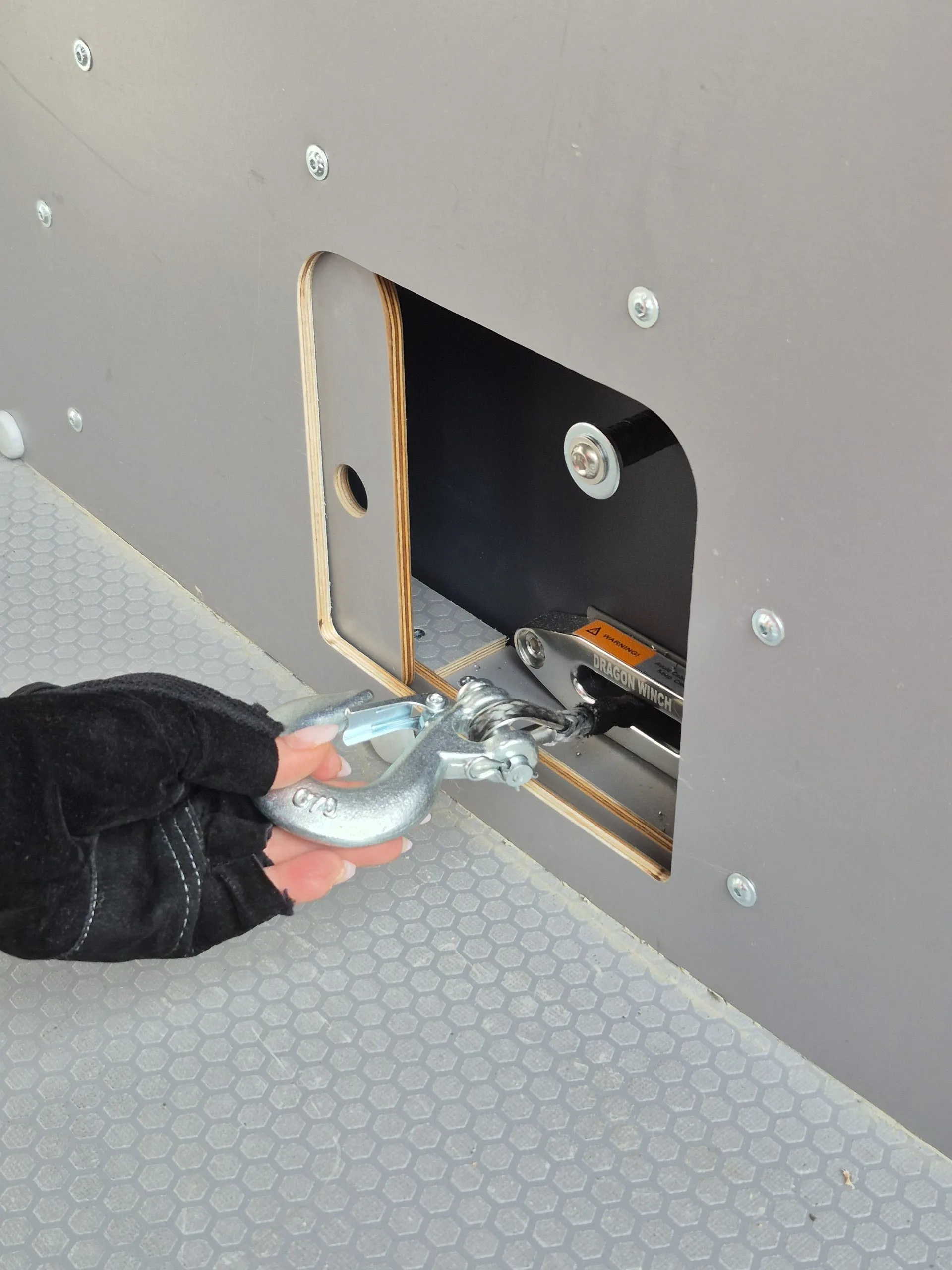

We also made an access hatch in the bulkhead to make winch servicing easier. The whole installation makes the device comfortable, quick and trouble-free to operate, with the winch ready for action in any conditions.

Technical specifications and advantages of the Dragon Winch DWM 2000 ST S:

• Maximum pulling force: 907 kg (2000 lb)

• Supply voltage: 12 V

• Motor: 1.2 HP, ensuring smooth and efficient operation

• Winding speed: 3.2 m/min

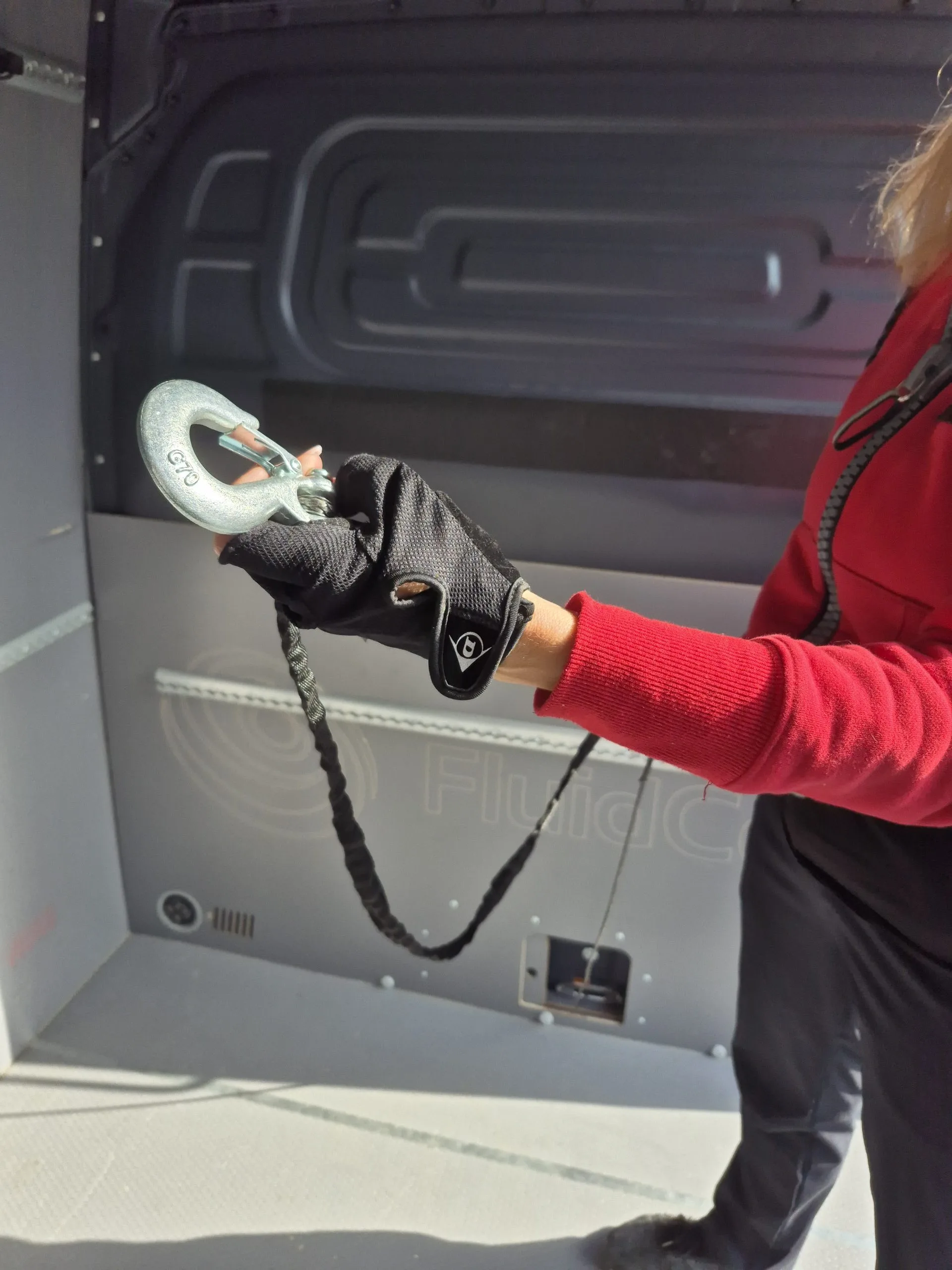

• Rope length: 12 m, synthetic or steel rope available

• Automatic brake: ensures safety at maximum load

• Weather resistance: waterproof IP67 housing, resistant to dust and dirt

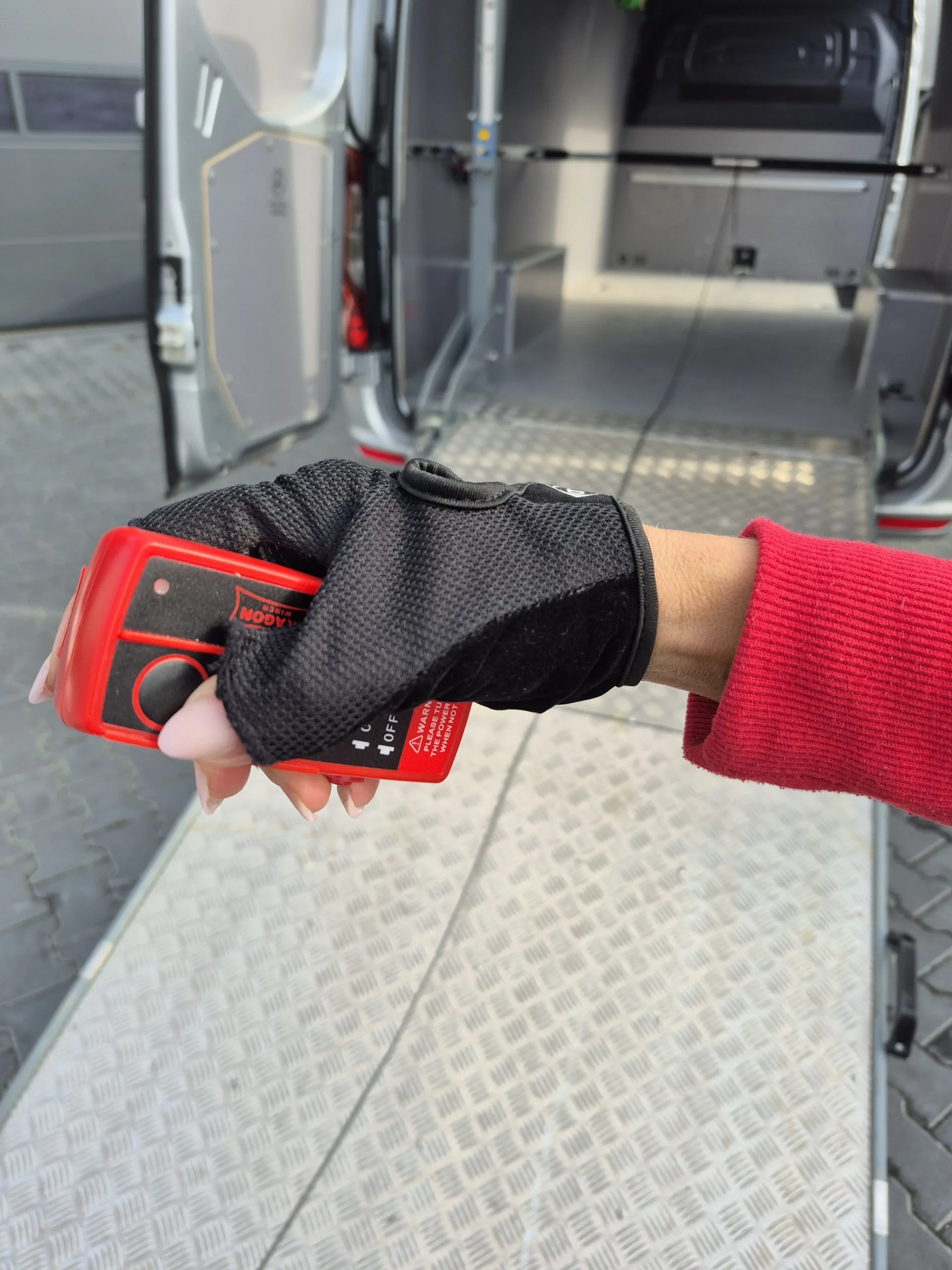

• Control: wired and wireless

The Dragon Winch DWM 2000 ST S is a reliable tool in any off-road conditions. At AMGX System we offer full support: from advice on choosing the right model, through professional installation, to servicing and technical support after purchase.
